    Type 6944X 4 Core SWA Cable BS5467 XLPE Galvanized Mild Steel Wires

    Ask Lasest Price
    Brand Name : UNI-Cables
    Model Number : 6944X
    Certification : ISO9001
    Price : Negotiable
    Supply Ability : 70000 Meters per Week
    Delivery Time : 15-18 working days
    • Product Details
    • Company Profile

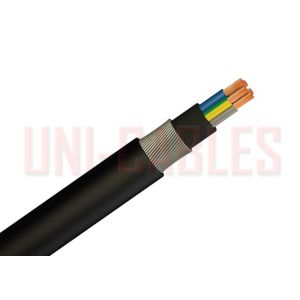

    Type 6944X 4 Core SWA Cable BS5467 XLPE Galvanized Mild Steel Wires

    Type 6944X Armoured Electrical Cable 4 Core SWA Cable According to BS5467


    APPLICATION

    Designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.


    Steel Wire Armour cable BS5467 (SWA) is a hard-wearing power cable, with mechanical protection, designed for the supply of mains electricity. SWA is suitable for indoors and outdoors, in cable ducts or directly buried in the ground. Multi-core steel wire armoured cable can also be used for auxiliary control.


    Armoured cable is protected by a sheath of wire armouring making it suitable for direct burial or use overhead without further protection.


    Standard: BS5467
    Conductors: Class 1 solid & Class 2 stranded, plain copper to EN 60228
    Insulation: XLPE
    Bedding: PVC
    Armour: Galvanised mild steel to BS EN 10257-1
    Sheath: PVC

    Core identity/colours:
    2 Core Blue/Brown
    3 Core Brown/Black/Grey
    4 Core Blue/Brown/Black/Grey
    5 Cores and above Numbered cores


    DIMENSIONS

    Conductor sizeInsulationBeddingBedding DiamArmourSheath r/tOverall DiamCable weight
    r/t (mm)r/t (mm)(mm)size (mm)(mm)(mm)(Kg/Km)
    1.5mm² (class 1)0.60.87.90.91.412.9353
    1.5mm² (class 2)0.60.88.40.91.413376
    2.5mm² (class 1)0.70.89.350.91.413.95451
    2.5mm² (class 2)0.70.89.90.91.414.5475
    4.0mm² (class 2)0.80.811.71.251.517.2715
    6.0mm² (class 2)0.80.813.11.251.518.6855
    10.0mm² (class 2)10.816.31.61.622.71348
    16.0mm² (class 2)1119.251.61.725.851767



    Quality Type 6944X 4 Core SWA Cable BS5467 XLPE Galvanized Mild Steel Wires for sale
