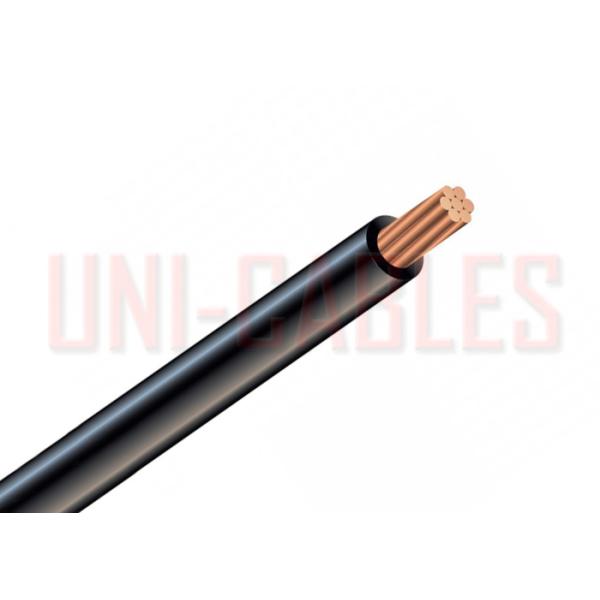

    UL 4703 XLPE Solar PV Wire Photovoltaic Insulation Bare Copper Conductor 2kV

    Ask Lasest Price
    Brand Name : UNI-CABLES
    Model Number : CU PV 2KV
    Certification : ISO9001,CCC
    Price : Negotiable
    Supply Ability : 100km per Month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    UL 4703 XLPE Solar PV Wire Photovoltaic Insulation Bare Copper Conductor 2kV

    Solar PV Wire Photovoltaic Wire UL 4703 XLPE Insulation Bare Copper Conductor 2kV

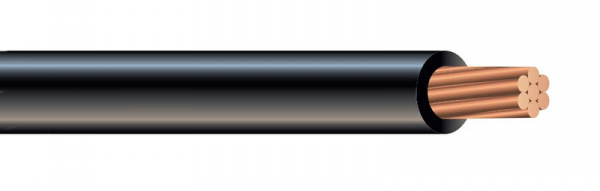

    Solar PV Wire (2kV) Construction:

    • Conductor: Stranded bare copper conductor per ASTM B-3, B-8.
    • Insulation: Cross-linked Polyethylene (XLPE)
    • Colors: Black, Green, White, Red. Print on one side with a contrasting ink. An extruded stripe and other colors are available upon request.

    Solar Cable Characteristics:

    • Temperature Range:
      • -40°C to 90°C Wet
      • -40°C to 105°C Dry
    • Maximum Operating Voltage: 2000V
    • Sunlight Resistant
    • Gasoline and Oil-Resistant II

    Solar Wire (2kV) Ratings:

    • UL Type PV (overall) UL 4703
    • UL 44
    • UL RHW-2 600V Direct Burial
    • Passes UL VW-1 Flame Test

    Solar Cable Applications:

    • Solar power applications that require 2,000 volt rating.
    • Grounded interconnection in solar power systems.
    • Ungrounded photovoltaic systems.

    DIMENSIONS

    AWG SizeConductor StrandingNom. Insul. Thick. (in)Nom. O.D. (in)Approx LBS/MFTCopper LBS/MFT
    1870.0750.19822.815.4
    1670.0750.20826.87.97
    1470.0750.22333.7312.78
    1270.0750.24243.8420.2
    1070.0750.26659.0932.05
    870.0850.31688.1251.05
    670.0850.354124.0680.9
    470.0850.402179.76128.9
    370.0850.43217.86162.5
    270.0850.462265.39204.9
    1190.1050.542344.62258
    1/0190.1050.583420.75326
    2/0190.1050.629514.86411
    3/0190.1050.68631.97518
    4/0190.1050.738778.47653
    250370.120.815943772
    300370.120.871113926
    350370.120.92112841081
    400370.120.96814531235
    500370.121.05317931544
    600610.1351.16321461853
    750610.1351.26826402309
